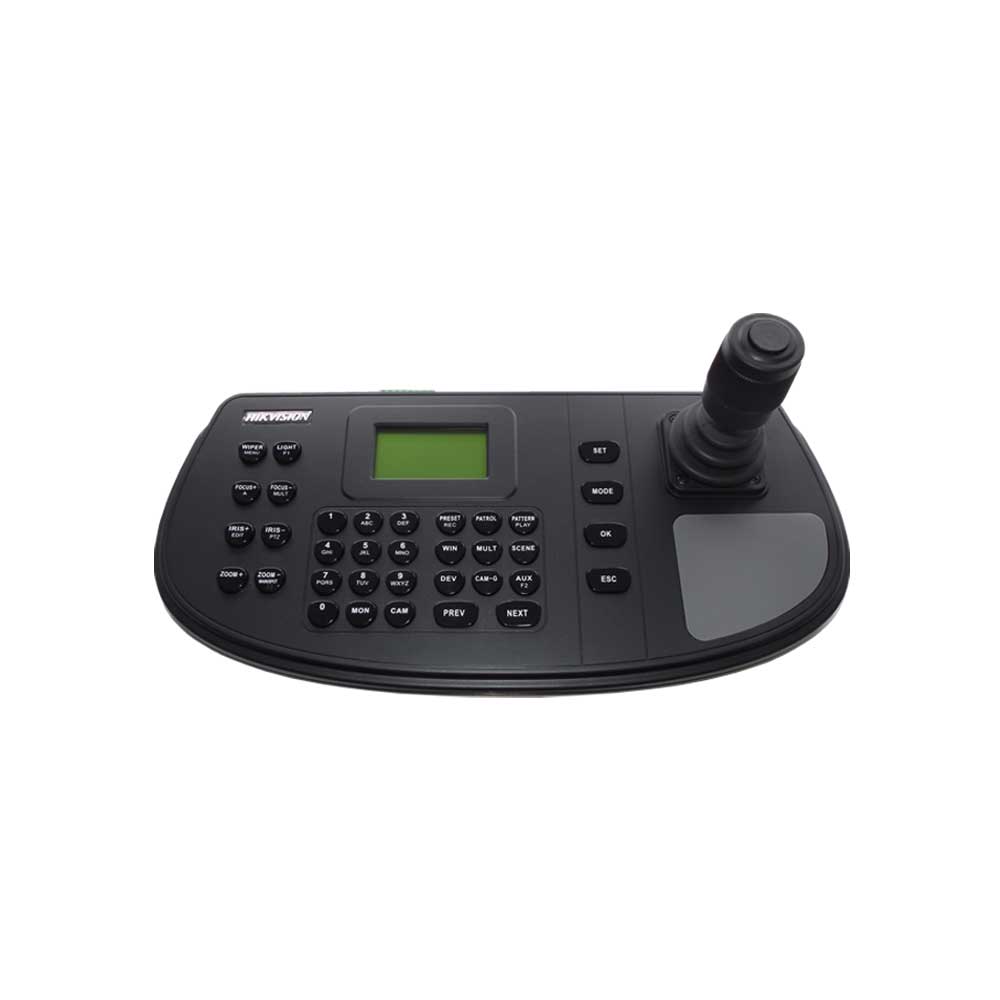

DS-1006KI
RS-485 Keyboard
128 x 64 screen
4-axis joystick
Connectable to the Multi-functional Video Center (MVC) and Matrix Access Gateway (VAG) by RS-422 serial port, and shortcut operation of camera/camera groups switch on video wall
Connectable to DVR by RS-485 serial port, and operation of front panel buttons
Connectable to dome by RS-485 serial port and realize PTZ control and picture capture by joystick operation
16 user accounts management: 1 admin and 15 operators
System upgrade and import / export of configuration files by USB-flash disk
Captured pictures(FAT32) can be stored in U-flash disk
4-axis joystick
Connectable to the Multi-functional Video Center (MVC) and Matrix Access Gateway (VAG) by RS-422 serial port, and shortcut operation of camera/camera groups switch on video wall
Connectable to DVR by RS-485 serial port, and operation of front panel buttons
Connectable to dome by RS-485 serial port and realize PTZ control and picture capture by joystick operation
16 user accounts management: 1 admin and 15 operators
System upgrade and import / export of configuration files by USB-flash disk
Captured pictures(FAT32) can be stored in U-flash disk
System | ||
---|---|---|
LCD screen: | 128 x 64 pixel screen | |
Joystick: | 4-axis joystick | |
Control mode: | RS-232, RS-422, RS-485 |
External Interfaces | ||
---|---|---|
Serial interface: | 1 RS-232, 1 RS-422, 1 RS-485 | |
USB interface: | 1 × USB 2.0 | |
Power supply: | 12 VDC |
General | ||
---|---|---|
Consumption: | ≤ 4.5 W | |
Working temperature: | -10 to +55° C (14 to 131° F) | |
Working humidity: | 10% to 90% | |
Dimensions (W × D × H): | 435 × 193 × 110 mm (17.1 × 7.6 × 4.3 inch) | |
Weight: | ≤ 1 kg (2.2 lb) |
