Chi Tiết Sản Phẩm

CS-SP206-B0-68WFBS

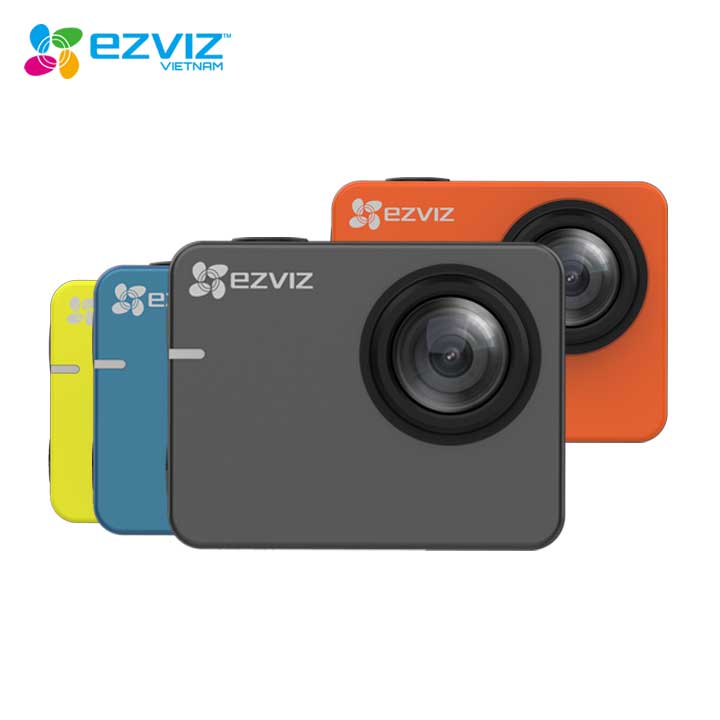

Camera hành trình S2

Camera hành trình Full HD 1080P/60fps
Góc quan sát rộng 150° với thuật toán hiệu chỉnh cong ảnh
Hỗ trợ chụp ảnh với độ phân giải lên đến 8MP
Hỗ trợ chụp ảnh liên tục 15 hình/s
Màn hình cảm ứng IPS LCD
Hỗ trợ Micro
Hỗ trợ kết nối ứng dụng EZVIZ mobile app qua Bluetooth 4.0, Wifi
Pin 1160mAh thay thế được
Hỗ trợ thẻ nhớ microSD lên đến 256GB
Hỗ trợ HDR
Hỗ trợ cảm biến va chạm G-sensor
Hỗ trợ chế độ lái xe:
- Cảnh báo lệch lane
- Cảnh báo sắp va chạm phía trước
- Chống ghi đè lên đoạn video sảy ra va chạm
- Nhận diện và thông báo biển báo tốc độ.

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

2-in-1 Action Camera

Specifications

Model Parameters
Model	CS-SP206-B0-68WFBS
Video
Video Format	Resolution: 1080P NTSC (fps):24/30/48/60 PAL (fps): 24/25/48/50 FOV:Wide/Medium/Narrow; Resolution: 720P NTSC (fps):30/60/120 PAL (fps): 25/50/120 FOV:Wide/Medium/Narrow; H.264 BP/MP/HP Level 5.1 With MP4 Muxer File Format
Record Mode	Video, Video+Photo
Low Light	Auto-adjusts frame rate for enough exposure time
Distortion Correction	Better X/Y Correction
HiLight Tag	Highlight important times, used for post-processing
Split Mode	Set the length of a video clip
Protune	White Balance; ISO; Sharpness; EV Comp; Color Pattern
Loop Mode	To set up the storage mode according to the time interval set
Single Photo
Image Size	8MP; 4MP; 2MP
Night	2s; 5s; 10s; 15s; 20s (auto-adjusts for exposure target)
Distortion Correction	Better X/Y Correction
Meter Mode	Center, Average, Spot
Protune	White Balance, ISO, Sharpness, EV Comp, Color Pattern
Burst
Image Size	8MP; 4MP; 2MP
Burst Rate	15 frames per second; 15 frames 2 second; 15 frames 3 second; 10 frames per second; 10 frames 2 second; 10 frames 3 second; 5 frames per second (default); 3 frames per second
Distortion Correction	Better X/Y Correction
Meter Mode	Center, Average, Spot
Protune	White Balance; ISO; Sharpness; EV Comp; Color Pattern
Time-lapse
Shutter Mode	Time-lapse Photo, Time-lapse Video
Image Size	8MP; 4MP; 2MP
Video Resolution	1080P, 720P
Shutter Interval	1s；3s；5s；10s；30s；60s；120s；300s
Meter Mode	Center, Average, Spot
Night	2s, 5s, 10s, 15s, 20s
Distortion Correction	Better X/Y Correction
Protune	White Balance; ISO; Sharpness; EV Comp; Color Pattern
Setup
View	Up, Down
Default Mode	Video, Single, Burst, Time-lapse
Driving Mode	The camera automatically starts recording after it detects the motion
Video-Out Mode	HDMI HD output/AV analog output
LED	Set it on or off
OSD	Turn screen display on or off
Quick Capture	Minimum time to turn on and engage the shutter: 2s
Auto Off	Set Auto Power Off Time
Date And Time	Set Date And Time
Mic Gain	Set the Gain of Mic
Speaker Gain	Set the Gain of Speaker
Camera Reset	Resets camera to default settings
Wireless
BLE 4.0	Built-in Bluetooth 4.0
Wi-Fi	802.11b/g/n, Mobile App Support
App & Remote	Select connect mode with the EZVIZ Sports app Or Wi-Fi remote
SSID	Supports SSID modification via the EZVIZ Sports app
KEY	Supports key modification via the EZVIZ Sports app
RESET	Reset SSID and KEY to system default
Display
HDMI	Playback/Record UI
AV	AV output uses USB port
Embedded LCD	320x240 (2 inch) IPS LCD with touch panel
General
Platform	NC96160 (custom HIKVISION chip)
Memory	DDR3, SPI Flash
Lens	150° Ultra-wide angle of view with less distortion
Sensor	HDR Support, G-Sensor
Battery Type	Embedded
Battery Life	2 hours in 1080p 60fps mode (varies according to video mode)
Audio	48kHz (sampling); Advanced AGC (automatic gain control); Built-in single microphone; Single track
Interface	Micro USB2.0; Media playback/file transfer/charging when connecting to a PC; AV output; Micro HDMI; MicroSD
Storage
Standard	Class 10 or up to UHS-1 level Micro SD storage card
Capacity (Auto-Negotiati on SDIO Clk From 24MHZ to 120MHZ)	8GB; 16GB; 32GB; 4GB; 128GB
Recording Time	Varies with different resolutions and frame rates
Photo & Video Preview & Playback Setup
App for Mobile Device	For iOS and Android system
Function	Live view, playback, recording, configuration, video file editing, and one-touch share to social media are supported
Playback	Decodes photo and video files in SD Card and displays it via LCD or HDTV
