DS-2CD2T47G3E-L

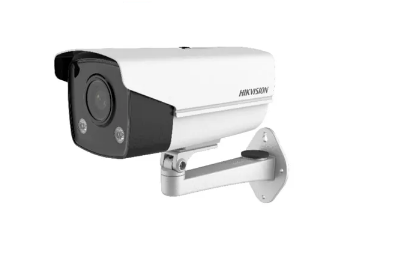

4 MP ColorVu Fixed Bullet Network Camera
4 mm/6 mm fixed lens
H.265+, H.264+
120dB WDR
0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
12 VDC & PoE (802.3af, class 3)
Built-in micro SD/SDHC/SDXC slot, up to 128G
IP67
BLC/3D DNR/HLC/Defog
24-hour colorful video
Camera |
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
Min. Illumination |
0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Focal length |
4/6 mm |
Focus |
Fixed |
Aperture |
F1.0 |
FOV |
4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5° 6 mm, horizontal FOV: 54°, vertical FOV: 29°, diagonal FOV: 63° |
Lens Mount |
M16 |
Auto-Iris |
No |
DNR |
3D DNR |
Wide Dynamic Range |
120dB |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90° |
Compression Standard |
|
Video Compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.264+ |
Main stream supports |
H.265 Type |
Main Profile |
H.265+ |
Main stream supports |
Video Bit Rate |
32 Kbps to 8 Mbps |
Image |
|
Max. Resolution |
2560 × 1440 |
Main Stream |
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Third stream |
50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240) 60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240) |
Image Enhancement |
BLC/3D DNR/HLC/Defog |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
ROI (Region of Interest) |
No |
Network |
|
Network Storage |
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger |
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function |
One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Firmware Version |
V5.5.53 |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
Simultaneous Live View |
Up to 6 channels |
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
Client |
iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
Web Browser |
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
On-board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button |
Yes |
SVC |
H.265 encoding and H.264 encoding support |
Smart Feature-set |
|
Behavior Analysis |
Line crossing detection, intrusion detection |
General |
|
Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption |
12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W |
Visible Light Range |
Warm white LEDs (3000K), up to 30m |
Protection Level |
IP67 |
Accessory |
The wall mount is included in the package, and the wall mount model is DS-1292ZJ |
Material |
Front cover: metal, back cover: metal |
Dimensions |
Camera: 114 × 110 × 220 mm (4.5″ × 4.3″ × 8.7″) |
Weight |
Camera: 920 g (2 lb.) |
