Chi Tiết Sản Phẩm

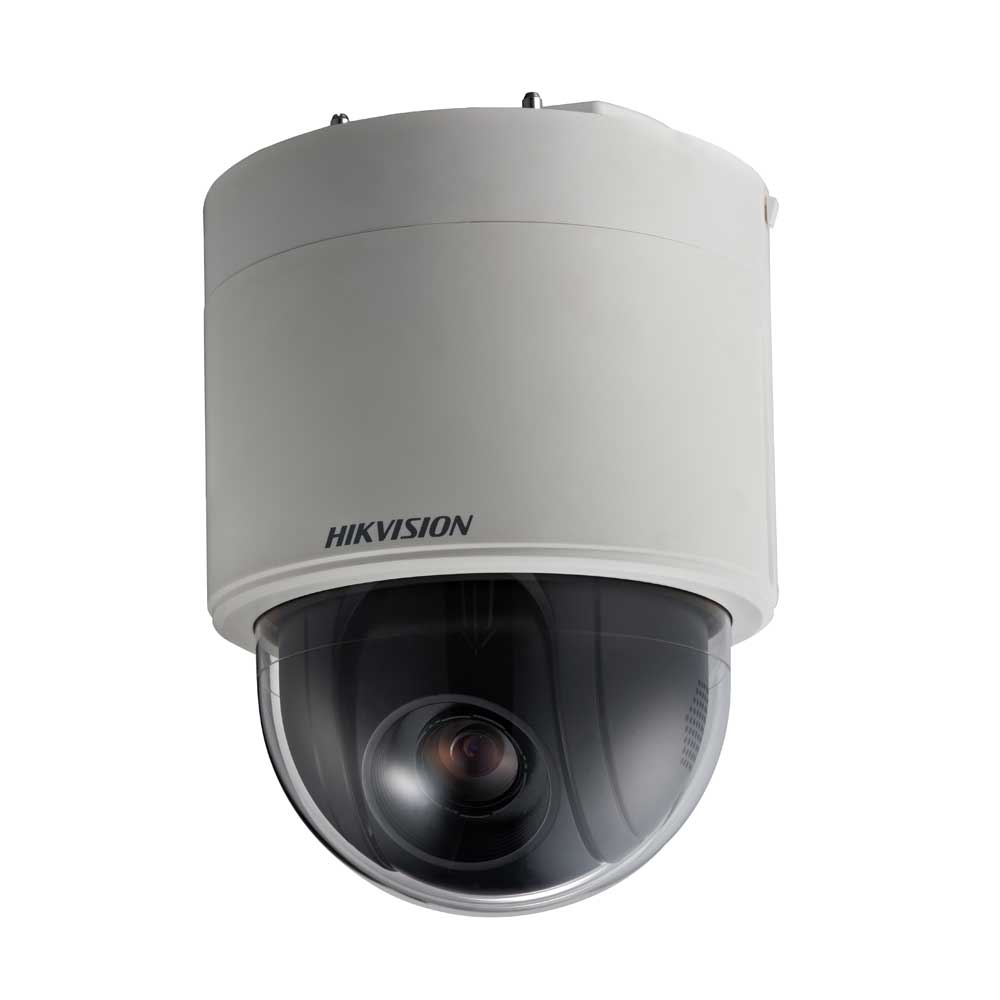

DS-2DF5225X-AE3

2MP 25× Network Speed Dome

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. Illumination:
Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
25× optical zoom, 16× digital zoom
120dB WDR, 3D DNR, HLC
24 VAC & Hi-PoE
Support H.265+/H.265 video compression
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
IK10, IP66
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1/1-1/30,000s
60Hz: 1/1-1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.5 mm to 112.5 mm, 25× Optical
Zoom Speed: Approx.3.7s(Optical Wide-Tele)
Angle of View: Horizontal field of view: 61.4° to 2.7° (wide-tele)
Vertical field of view: 40.7° to 1.7° (wide-tele)
Diagonal field of view: 70.0° to 3.2° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.6-F4.0
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range: -5°~90° (Auto Flip )
Tilt Speed: Pan Manual Speed: 0.1° -240°/s,
Pan Preset Speed: 400°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output: Line level, impendance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support 24 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: Outdoor dome: Max. 40W
Indoor/In-ceiling dome: Max. 25W
Working Temperature/Humidity: -40°C to 65°C (-40°F to 149°F) (Outdoor)
-10°C to 50°C (14°F to 122°F) (Indoor)
Protection Level: IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: Φ 220 mm × 302 mm (Φ 8.66" × 11.89") (Outdoor)
Φ 245.1 mm × 239 mm (Φ 9.65" × 9.41") (Indoor)
Weight (approx.): Approx. 4 kg (8.82 lb) (Outdoor)
Approx. 3.4 kg (7.50 lb) (Indoor)
Mount Option: Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
