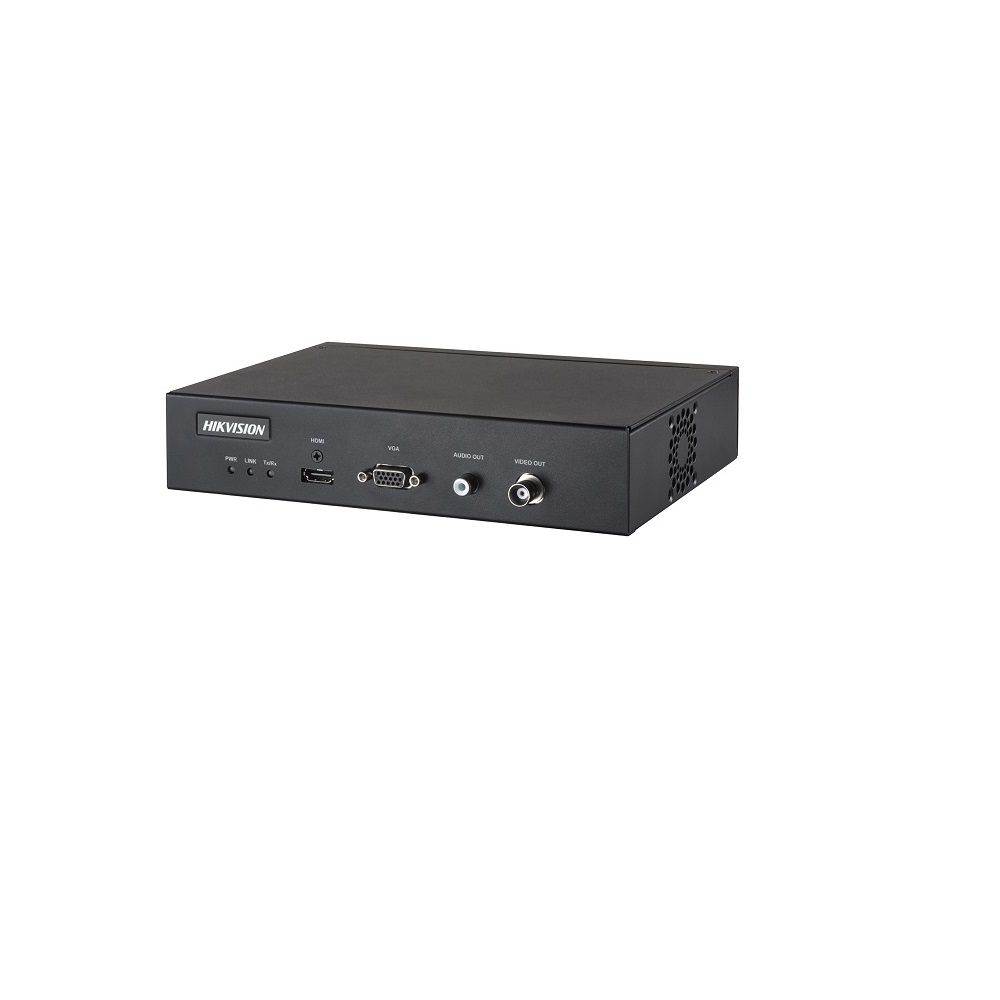

DS-6901UDI

4K Decoder

Provides HDMI, VGA, and BNC output interfaces.
Up to 4K (3840 × 2160@30Hz) via HDMI output interface.
H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
PS, RTP, TS, ES, HIK encapsulation formats.
Three encoding levels: baseline, main, and high-profile.
G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Two decoding modes: active decoding and passive decoding.
Remote video files' decoding output.
Supports two-way audio via client software.
Supports window opening, window roaming and window split.
Supports multi-screen control with PC installed with RSC server.
Gets stream and decodes via URL and RTSP from encoding devices.
Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
Configurable LED width and height parameters when the LED is connected.

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Input/Output
OutputHDMI × 1, VGA × 1, BNC × 1
Output Resolution
HDMI:

4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz

BNC:

PAL: 704 × 576, NTSC: 704 × 480

Decoding
Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
Decoding Channel16-ch
Decoding Capability24MP@30fps: 1-ch, 12MP@20fps: 2-ch, 8MP@30fps: 4-ch, 5MP@30fps: 6-ch, 3MP@30fps: 10-ch, 1080p@30fps: 16-ch,
Split Screen1/4/6/8/9/12/16

Interface
Network Interface1 (10/100/1000 Mbps self-adaptive Ethernet interface)
Two-Way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
Two-Way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Audio Output1
Alarm In8
Alarm Out8

General
Power Supply12 VDC
Power Consumption≤ 15 W
Dimensions(W × D × H)220 mm × 148 mm × 45 mm (8.66 inch × 5.83 inch × 1.77 inch)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
≤ 1.12 kg (2.47 lb)
