DS-KV8113-WME1(B)

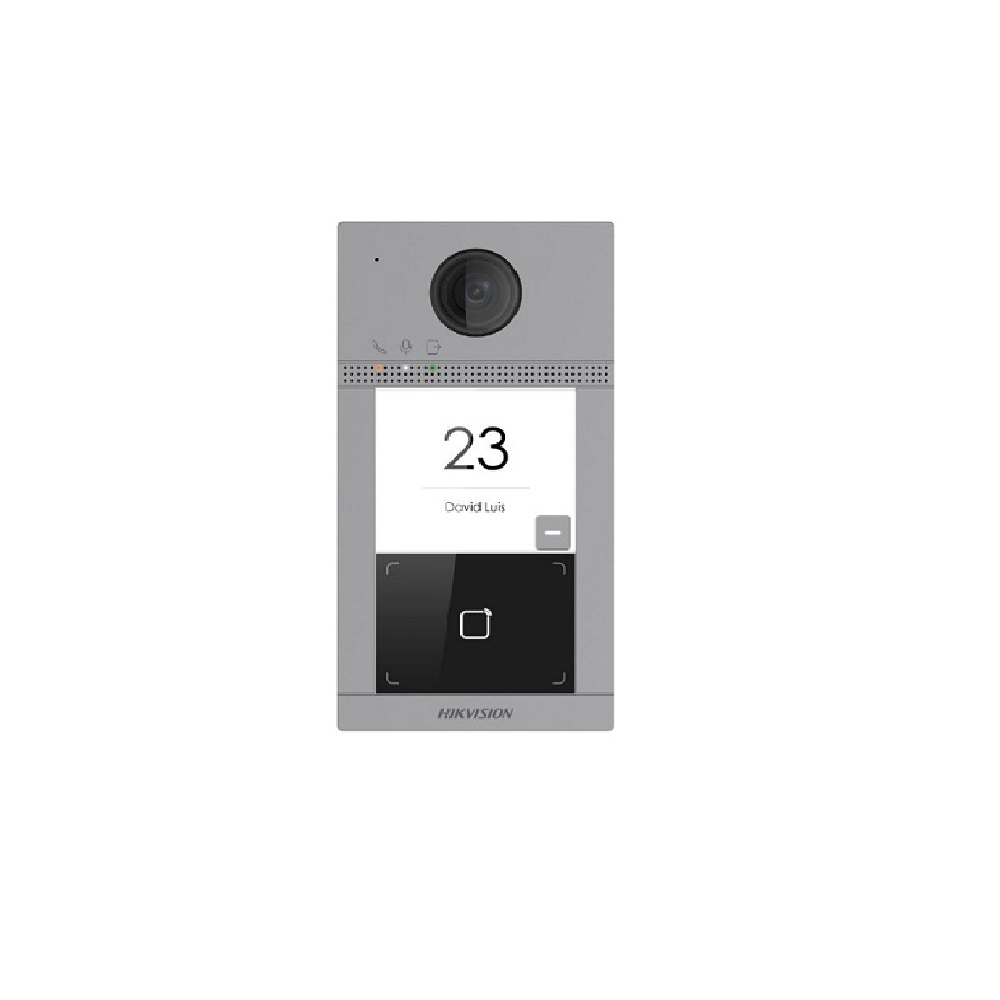

1 Button Metal Villa Door Station

Support Wifi, convenient setting up and no wiring required
Support web configuration
Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
Internal Mifare card reader, 1-ch Indoor station access control
Noise suppression and echo cancellation
2MP HD Camera with IR supplement
Standard PoE/12 VDC

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System Parameters
Operating SystemEmbedded Linux operation system
ROM32 M
RAM256 M
CPUEmbedded MCU Processor

Display Parameters
Screen Size/
Operation Method/
Type/
Resolution/

Video Parameters
Lens1
Resolution
Main stream : 1920 × 1080

Sub stream : 720 × 480
FOVHorizontal: 129° Vertical: 75°
WDRSupport
Supplement LightIR supplement
Video Compression StandardH.264

Audio Parameters
Audio Compression StandardG.711 U
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker (More than 85 dB within 20 cm)
Audio Compression Bitrate64 Kbps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable

Capacity
User Capacity/
Face Capacity/
Card Capacity/
Linked Indoor Station Capacity1

Network Parameters
Communication ProtocolTCP/IP, RTSP
Wired Network10/100 Mbps self-adaptive Ethernet
Wi-Fi Standard/
Bluetooth Version/
3G/4G Standard/

Device Interfaces
Alarm Input4
Network Interface1
TAMPER1
Exit Button2
RS-4851
USB0
Wiegand0
TF Card0
Alarm Output0
Lock Control2
Door Contact Input2
Power Interface1

Performances
Multi-Factor Authentication2000

General
Button1
InstallationSurface mounting
Indicator3
385 g
Protective LevelIP65, IK08
Working Temperature-40° C to +55° C(-40° F to 131° F)
Working Humidity10% to 95%
Dimensions174 mm × 91 mm × 29 mm
Battery/
Application EnvironmentOutdoor
Power Consumption＜ 10 W
LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
