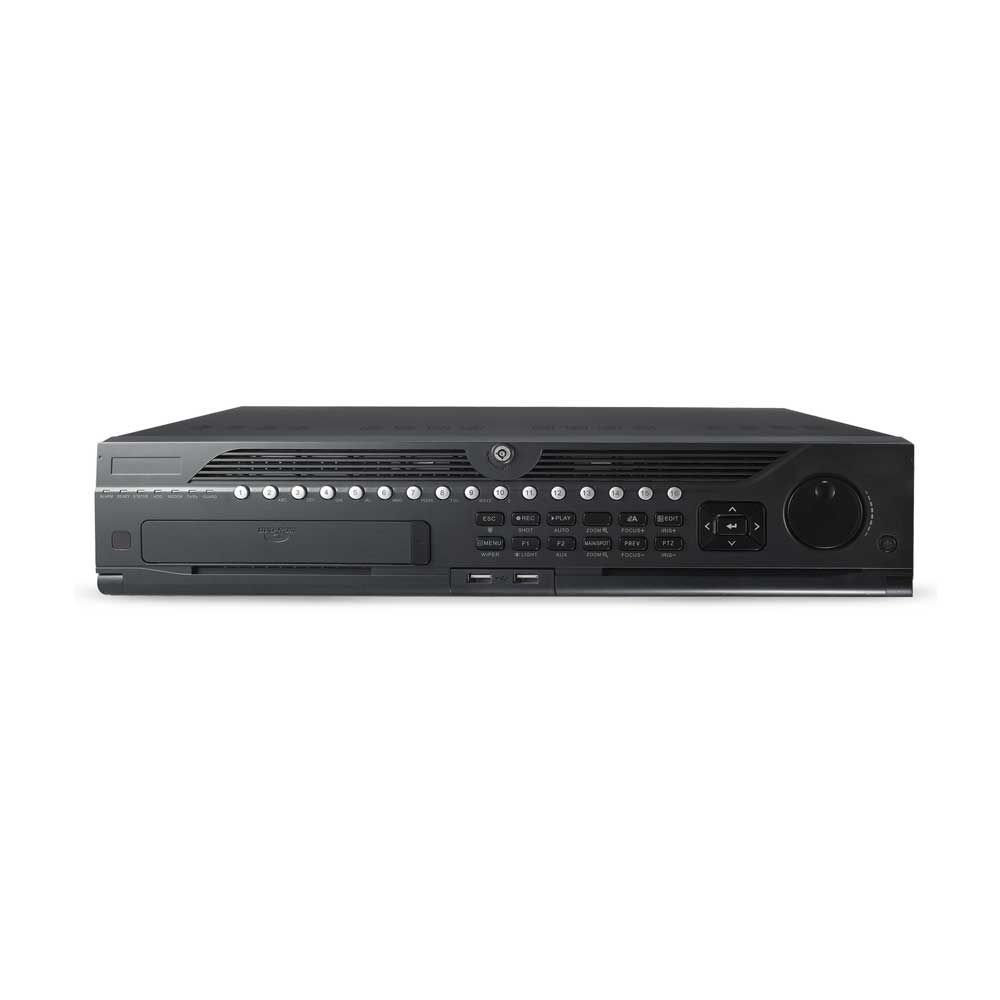

DS-9664NI-I8
Embedded 4K NVR
Embedded 4K NVR
• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution
• Up to 64 IP cameras can be connected with 320M incoming bandwidth
• Up to 8 SATA interfaces
• Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution
• Up to 64 IP cameras can be connected with 320M incoming bandwidth
• Up to 8 SATA interfaces
• Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
Video/Audio Input | ||
---|---|---|
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
IP video input: | 64-ch |
Network | ||
---|---|---|
Remote connection: | 128 | |
Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled) | |
Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled) |
Video/Audio Output | ||
---|---|---|
HDMI/VGA output: | 2-ch, resolution: HMDI1:4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
Audio Output: | 2-ch, RCA (2.0Vp-p, 1KΩ) | |
Synchronous Playback: | 16-ch |
Decoding | ||
---|---|---|
Capability: | 4-ch@8MP,16-ch@1080P | |
Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Hard Disk | ||
---|---|---|
Interface Type: | 1 eSATA interface | |
SATA: | 8 SATA interfaces for 8 HDDs | |
Capacity: | Up to 6TB capacity for each HDD |
Disk array | ||
---|---|---|
Array type: | RAID0, RAID1, RAID5, RAID10 | |
Number of array: | 4 |
External Interface | ||
---|---|---|
Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | |
Serial Interface: | RS-232, RS-485, Keyboard | |
USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
Alarm In: | 16-ch | |
Alarm Out: | 4-ch |
General | ||
---|---|---|
Power Supply: | 100 to 240 VAC, 50 to 60 Hz | |
Consumption(without hard disk and POE): | ≤30 W | |
Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
Working Humidity: | 10 % ~ 90 % | |
Chassis: | 19-inch rack-mounted 2U chassis | |
Dimensions: | 445 × 470 ×90 mm (17.5"× 18.5" × 3.5") | |
Weight(without HDD): | ≤ 10 Kg (22 lb) |
