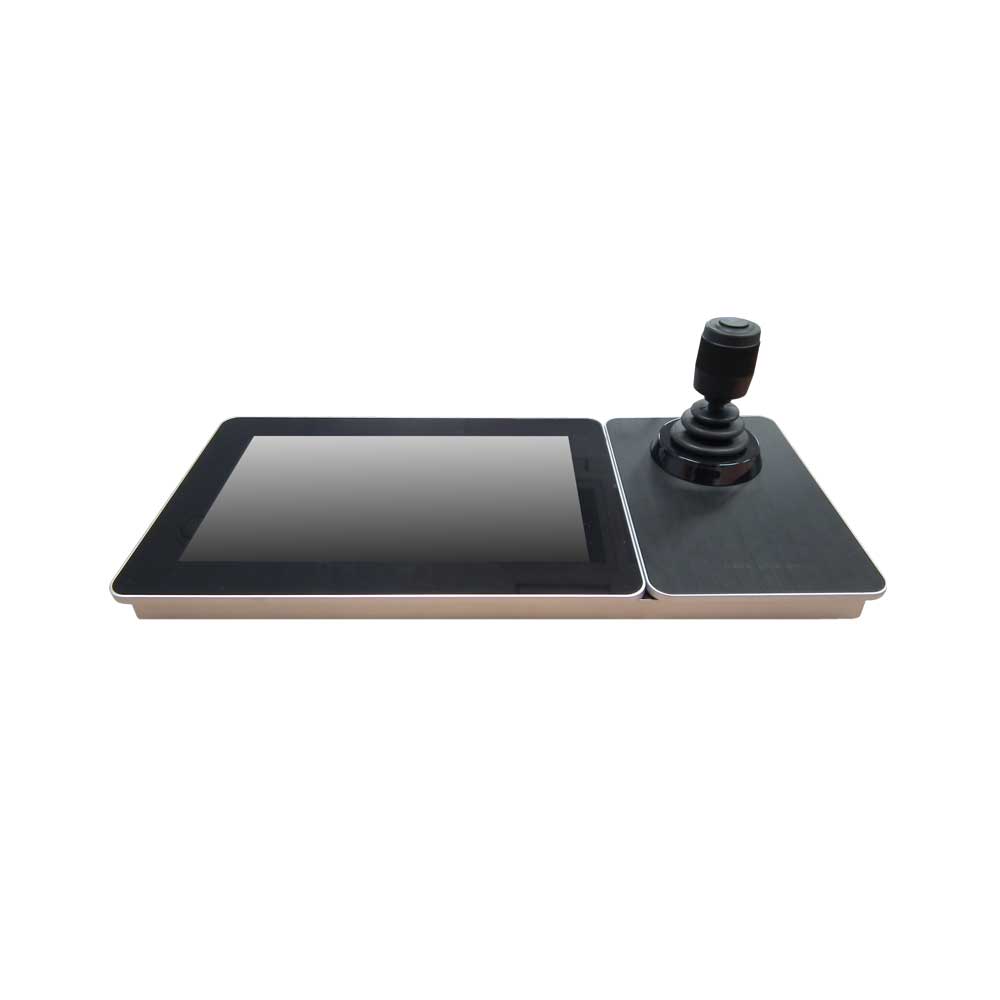

DS-1600KI

Network Keyboard

Main Features
 10.1" capacitive touchscreen;
 Detachable design of the touchscreen and joystick;
 Wired and WiFi network connection;
 POE power supply;
 Capable of decoding 2-ch at 1080P decoding; up to 16-division window display;
 Live view on touch panel;
 DVI and HDMI output to monitor;
 Controllable of 2000 devices;
 Access to Hikvision products including DVR, DVS, NVR, network camera, speed dome, etc.;
 Control of MVC and decoders for video decoding and output on video wall;
 PTZ control, setting and calling preset, patrol and pattern;
 Support upgrade and configuration files import/export by USB flash disk;
 Support recording and picture capturing; saving files in USB flash disk or uploading to FTP server;
 Two-level user authority and up to 16 user accounts are configurable: one admin and 15 operators.

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System
Operating System:		Android 4.4
TFT LCD Screen:		10.1" TFT LCD touchscreen Resolution: 1024 × 600
Joystick:		4-axis joystick
Local Decoding:		Local live view at 1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display

External Interfaces
Two-way Audio Input:		1-ch, 3.5mm connector (2.0Vp-p, >1kΩ)
Audio Output:		1-ch, 3.5mm connector (2.0 Vp-p, 600 Ω)
Network Interface:		10M/100M/1000M Adaptive Ethernet port
WiFi:		Supported
USB Interface:		USB 2.0 × 2
Video Interface:		HDMI, DVI

General
Power Supply:		12V DC /POE
Consumption:		≤15W
Working temperature:		-10°C --＋55°C
Working humidity:		10％--90％
Dimensions (W × D × H):		404 × 180 × 163 mm
Weight:		1.7 Kg
