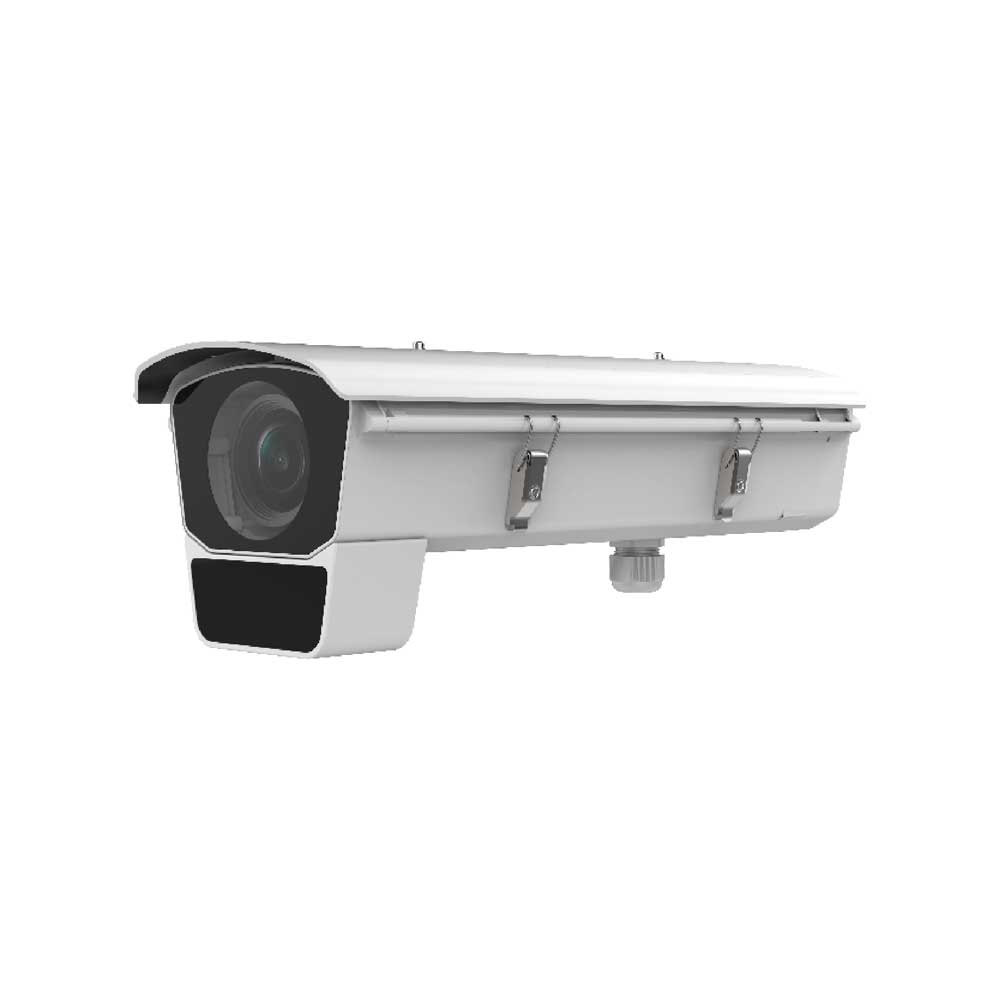

DS-2CD7026G0/EP-I

2 MP Box Network Camera

• 1/1.8" progressive scan CMOS
• Full HD1080p video, up to 60fps
• Auto-iris, P-iris optional
• 140dB WDR
• Alarm I/O, Audio I/O, mono sound
• Color: 0.002 Lux @(F1.2, ADC On)
• H.265, H.265+. H.264, H.264+
• Auto back focus (ABF) optional
• License Plate Recognition
• Support alarms for listed license plate in the blacklist and whitelist
• Five defined streams and up to five custom streams
• Built-in microSD/SDHC/SDXC card slot, up to 256 GB

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/1.8" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.002 Lux @ (F1.2, AGC ON)
Shutter time:		1 s to 1/100,000 s
Slow shutter:		Yes
Lens Mount:		CS
Auto Iris:		DC drive(-P: support P-Iris)
Day& Night:		IR Cut Filter
Wide Dynamic Range:		140dB
Focus:		ABF(-A model)

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Baseline Profile/ Main Profile/High Profile
Video bit rate:		32Kbps~16Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)/PCM (32Kbps)

Max. Image Resolution:		1920 x 1080
Frame Rate:		50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Settings:		Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping:		Yes
3D DNR:		Support

Network
Network Storage:		Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:		One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility:		ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Intelligent
Behavior analysis:		Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Interface
Communication Interface:		1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, selp-adaptive)
Audio:		1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm:		2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Video Output:		1Vp-p Composite Output (75 Ω, BNC)
On-board storage:		Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:		Yes

Smart Feature-set
Road Traffic and Vehicle Detection:		Support No License Plate Detection; Support Motorcycle LPR(only applicable to checkpoint); Support Blacklist and whitelist: Max. 10,000 records
Behavior Analysis:		Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region
Region Entrance:		Enter a pre-defined virtual region from the outside place
Region Exiting:		Exit from a pre-defined virtual region
Unattended Baggage:		Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:		Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:		Scene change detection, defocus detection

General
Operation Condition:		-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
Power Consumption:		With extra load: 12 VDC, 1.0 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3 Without extra load: 12 VDC, 0.8 A, max. 9 W; 24 VAC, 0.75 A, max. 9 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3 “with extra load” means that an extra device is connected to and powered by the camera.
Dimensions:		Camera: 142.6 × 69.8 × 68 mm (5.61ʺ × 2.75ʺ × 2.68ʺ) With package: 315 × 140 × 140 mm (12.4ʺ × 5.51ʺ × 5.51ʺ)
Weight:		-AP: approx. 750 g (1.65 lb.), 1050 g (2.31 lb.) with package Non-AP: approx. 700 g (1.54 lb.), 1000 g (2.20 lb.) with package
