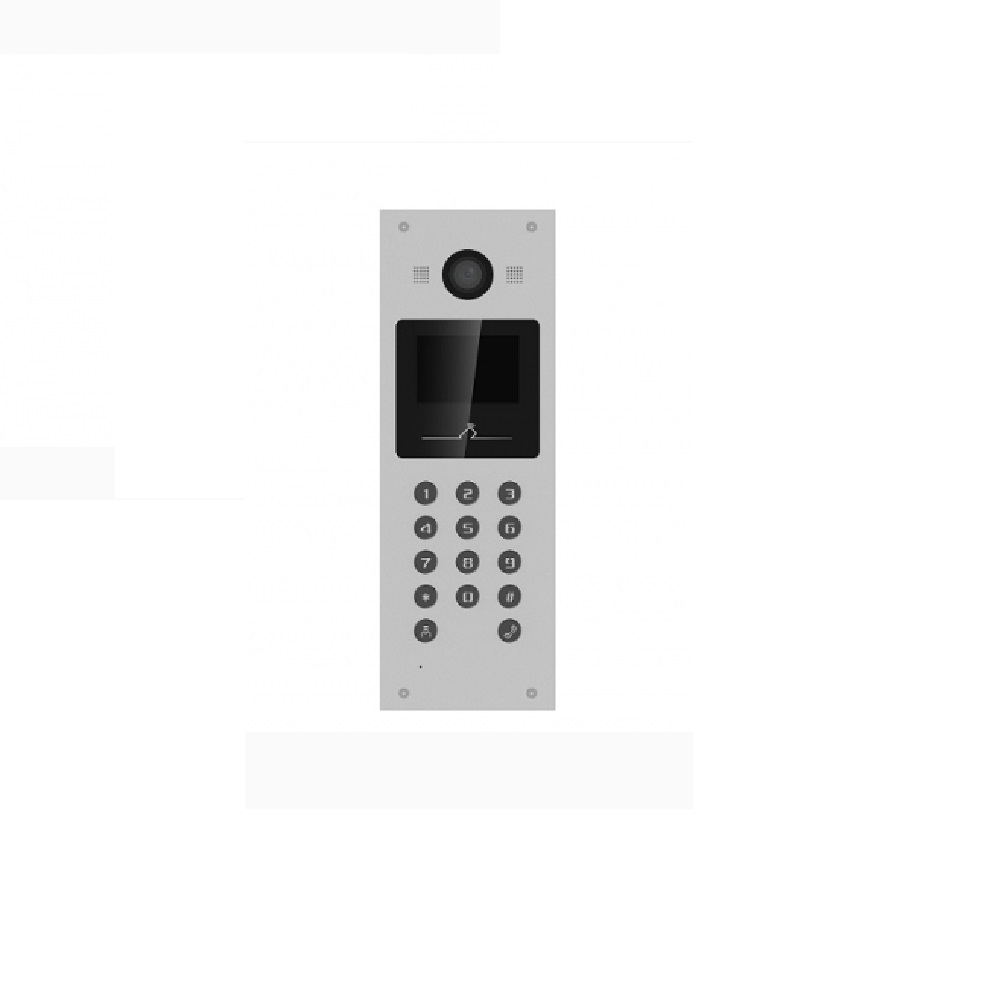

DS-KD3003-E6
3.5inch Metal IP Door Station
2 MP HD camera with high quality image
120 ° wide angle of view
3.5-inch colorful LCD screen with 480 × 320 resolution
Unlocks by cards and pin-codes
Supports cofiguration via Web remotely
120 ° wide angle of view
3.5-inch colorful LCD screen with 480 × 320 resolution
Unlocks by cards and pin-codes
Supports cofiguration via Web remotely
- System Parameters
- Operating SystemEmbedded Linux operation system
- ROM4 GB
- RAM512 MB
- CPUEmbedded processor
- Display Parameters
- Screen Size3.5-inch
- Operation MethodDisplay screen, physical buttons
- TypeColorful LCD
- Resolution480 × 320
- Video Parameters
- Lens2 MP HD camera
- Resolution
Main stream: 1920×1080p ,720p
Sub stream: 640×480
- FOVHorizontal: 70°, Vertical: 118°, Diagonal: 132°
- WDRSupport
- Supplement LightLow illumination, IR supplement lights
- Video Compression StandardH.264
- Audio Parameters
- Audio Compression StandardG.711 U, G.711 A
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- User Capacity/
- Face Capacity/
- Card Capacity10000
- Linked Network Camera Capacity500
- Network Parameters
- Communication ProtocolTCP/IP, RTSP
- Wired NetworkSupport
- Wi-Fi Standard/
- Bluetooth Version/
- 3G/4G Standard/
- Authentication
- Card TypeMifare card
- Device Interfaces
- Alarm Input8
- Network Interface1 10/100/1000 Mbps self-adaptive, RJ45 analog interface
- TAMPER1
- Exit Button2
- RS-4851
- USB0
- Wiegand1
- TF Card/
- Alarm Output2
- Lock Control1
- Door Contact Input2
- Power Interface1
- Performances
- Multi-Factor Authentication10000
- General
- Button14 physical buttons
- InstallationFlush mounting
- Indicator/
-
Without package: 1.05 kg
With package: 2.166 kg
- Protective LevelIP 65
- Working Temperature-40 ° C to +55 ° C (-40 ° F to +135 °F)
- Working Humidity10% to 95%
- Dimensions357.3 mm × 124.3 mm × 55.3 mm (14.07" × 4.89" × 2.18")
- Battery/
- Power Supply≤ 10 W
- Application EnvironmentOutdoor
- LanguageEnglish, Portuguese (Brazil), Russian, Spanish, French, Turkish, Vietnamese, Ukrainian
