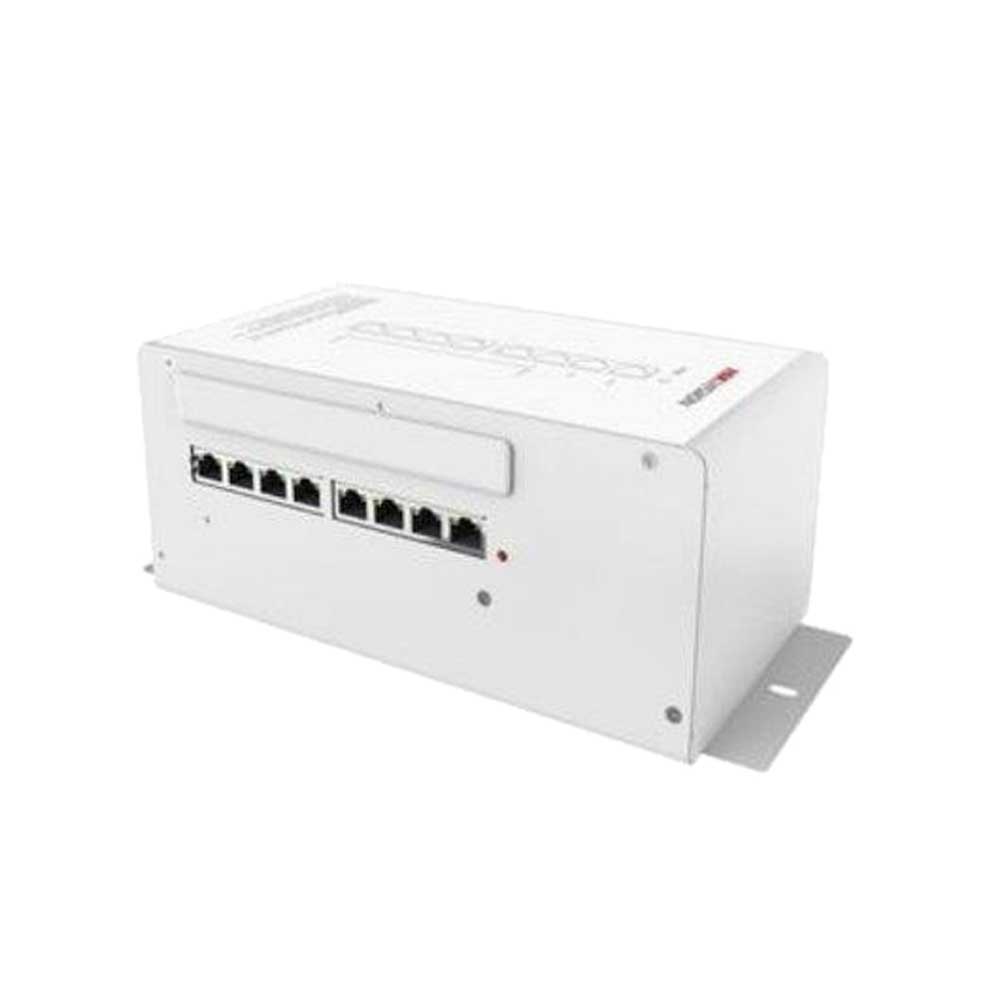

DS-KAD606
Video/Audio Distributor
Built-in 24 VDC voltage-stabilized switching mode power supply
Eight RJ-45 interfaces, including six adaptive 10/100 Mbps LAN interfaces
supporting network cable powering and two adaptive 10/100 Mbps cascading LAN
interfaces
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
VLAN technique
(Optional) Suitable for wall mounting
Eight RJ-45 interfaces, including six adaptive 10/100 Mbps LAN interfaces
supporting network cable powering and two adaptive 10/100 Mbps cascading LAN
interfaces
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
VLAN technique
(Optional) Suitable for wall mounting
Network Parameters | ||
---|---|---|
Interface number: | Eight 10/100 Mbps Interfaces | |
Interface type: | RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive | |
Standard: | IEEE802.3, IEEE802.3u, IEEE802.3x | |
Processing type: | Storing and Forwarding | |
Flow control: | IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex) | |
Priority queue: | Four | |
MAC address list: | 8K | |
Internal buffer: | 1 Mbit |
General | ||
---|---|---|
Power Supply: | 220V AC | |
Power Consumption: | <3 W | |
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
Working Temperature: | -30°C to 70°C (-22°F to 158°F) | |
Working Humidity: | 5% to 95%, No Condensation | |
Dimensions(L × W × H): | 268.6 mm × 118.4 mm × 102.2 mm (10.6" × 4.7" × 4.0") |
