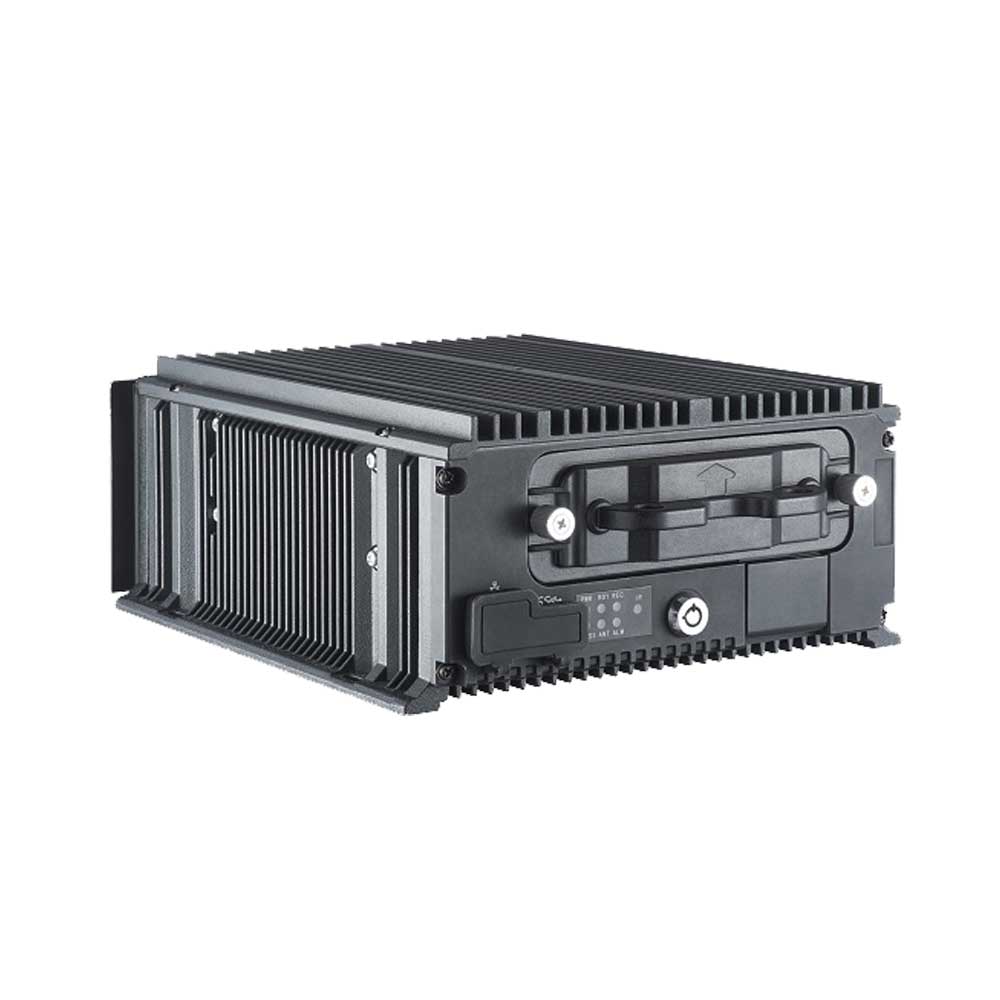

DS-MP7608HN-M12

Mobile NVR

Key Feature
 Connects 8-ch IP cameras via PoE interfaces. Connects 8 more IP cameras via PoE switch.
 Up to 1080p resolution of H.264/H.265 compression for each IP camera.
 One CVBS video output interface.
 One VGA video output interface with up to 1080p resolution.
 Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology.
 Store videos that has dropped frame in SD card when HDDs/SSDs are damaged).
 Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
 Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
 Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc.
 Specialized aviation connectors ensuring signal stability.
 Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
 Back up two upgrade packages to reduce risk of failure.
 Battery protection avoids vehicle from running out of battery.
 Wide-range power input (+9 VDC to +32 VDC).
 Power-off protection prevents key data from loss.
 Supports accessing via WEB browser.
 Aluminum die-cast chassis.
 Housing is available for protecting mobile video recorder from water.
Available Model
DS-MP7608HN, ((supports M12)
DS-MP7608HN/GW/WI58, (supports M12, 3G dialing, and 5.8G Wi-Fi)
DS-MP7608HN/GLF/WI58, (supports M12, 4G dialing, and 5.8G Wi-Fi)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Video/Audio input
IP camera:		16-ch: 8-ch connected via PoE interfaces and 8-ch extendable via PoE interfaces

Video/Audio output
Video Output:		CVBS video output:1-ch, PAL: 704 × 576, NTSC: 704 × 480 VGA video output:1-ch, resolution: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Audio output:		1-ch

Encoding/Decoding parameters
Video compression:		H.264,H.265
Encoding resolution:		Main stream: 1080p/720p/WD1/4CIF. Sub-stream: 4CIF/2CIF/CIF
Frame rate:		PAL: 1 to 25fps; NTSC: 1 to 30fps
Audio compression:		G.722
Audio bitrate:		16 Kbps
Dual Streams:		Supported

Hard Disk
Type:		2 × 2.5 inch hard disk (HDD/SSD)
Capacity :		Up to 2 TB for each disk

Wireless Network
3G/4G Dialing:		Optional pluggable 3G(WCDMA)and 4G(FDD-LTE)
Wi-Fi:		802.11AC module,5.8GHz and 2.4GHz supported

Positioning
Type:		Built-in
Positioning Module:		GPS(Global Positioning System)

External interface
Two-way audio compression:		G722
Sensor-in:		4 high/low level signal inputs
Alarm input:		4 high/low level signal inputs
Alarm output:		2 relay signal outputs
Network interface:		 Front panel: 1 × 10M/100M/1000M RJ45 Ethernet interface  Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface
Serial interface:		2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
USB port:		● Front panel: 1 × USB 3.0 ● Rear panel: 1 × USB 2.0 of 5-pin aviation plug
SD Card:		1 SD/SDHC/SDXC slot, up to 256 GB
CAN Interface:		2

General
Operating system:		Linux
Operating method:		Mouse, IR remote control, and Web control
Power Supply:		Input: 9 to 32 VDC; Output: 12 VDC/1 A, 5 VDC/1 A
Consumption:		● Standby: ≤ 0.5 W ● Full load: ≤ 99 W Note: Without peripheral and storage media ≤ 20 W
Working temperature:		● Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) ● Other devices: -10 °C to +60 °C (14 °F to 140°F)
Working humidity:		10% to 95%
Dimensions (W×D×H):		202 × 267.6 × 93.9 mm (8.0 × 14.5 × 3.7 inch)
Weight (without HDDs/SSDs):		3.66 kg (8.07 lb)
