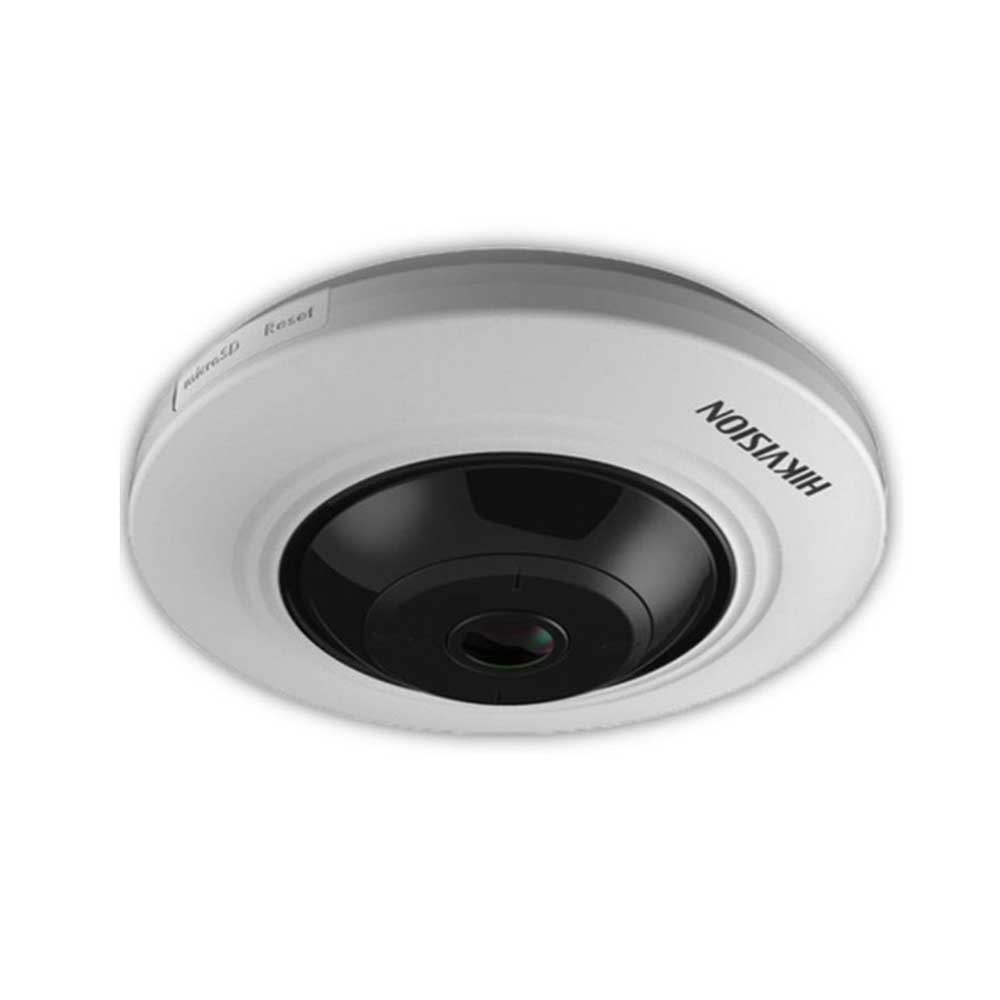

DS-2CD2955FWD-I(S)

5 MP Network Fisheye Camera

5 MP Network Fisheye Camera
• Up to 5 megapixel high resolution
• 2560 × ‍1920 @30fps
• H.265, H.265+, H.264+, H.264
• Support 14 display modes
• FOV: horizontal FOV 180°, vertical FOV 180°
• Dual video streams
• DC12V & PoE (802.3af)
• Digital Noise Reduction
• Support on-board storage, up to 128 GB
• Up to 8m IR range
• -S: Audio/Alarm IO

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/2.5" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
Lens Mount:		M12
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Main Profile/High Profile
Video bit rate:		32Kbps~16Mbps
Audio Compression:		-S: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Dual Stream:		Yes

Max. Image Resolution:		2560×1920
Frame Rate:		50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub Stream:		50Hz: 25fps (352× 288, 704 × 576) 60Hz: 30fps (352 × 240, 704 × 576)
Image Enhancement:		WDR/3D DNR/Backlight Compensation/Defog
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Distortion Correction:		Support
BLC:		Support
ROI:		Support 1 fixed region for each stream
Day/Night Switch:		Auto/Scheduled

Network
Network Storage:		Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Protocols:		TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G), ISAPI

Interface
Audio:		With –S model: 1 input (line in), 1 output
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
Alarm:		with -S model：1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region

General
Operating Conditions:		-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Consumption:		DC 12V ± 25%, 2A, 5W PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W
IR Range:		Up to 8m
Dimensions:		Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
Weight:		600 g (1.32 lbs.)
