Chi Tiết Sản Phẩm

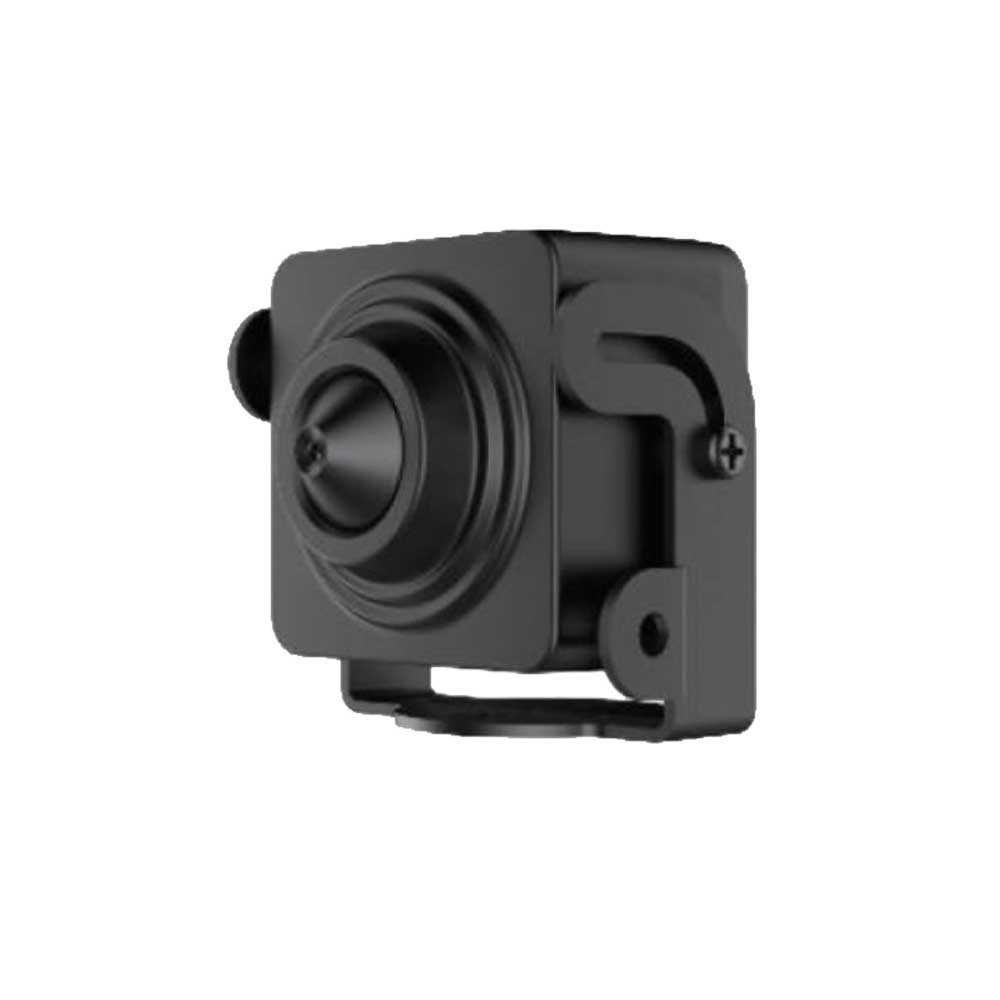

DS-2CD2D21G0/M-D/NF

2 MP Mini Network Camera

• 1/2.7'' progressive scan CMOS
• 1920*1080@30fps
• 120dB WDR
• 3D DNR
• H.265+,H.265,H.264+,H.264
• 6 behavior analyses, 2 exception detections and face detection
Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Without /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON)
With /M model:
Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON)
B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: Without /M model: 3.7 mm
With /M model: 2.8 mm, 4 mm
Lens Mount: M12
Adjustment Range: Without /M model: 3.7 mm
horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90°
With/M model:
2.8 mm
horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm
horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102.5°
Day& Night: Electronic
Wide Dynamic Range: 120 dB
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~8Mbps
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream: 50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement: 3D DNR
3D DNR: Support
ROI: Support 1 fixed region for main stream, sub-stream and third stream
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
Interface
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Audio: 1 input (line in)
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection, defocus detection
Recognition: Face Detection
General
Operation Condition: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 20%, Φ 5.5 mm coaxial plug power
Power Consumption: 12 VDC, 0.3 A, max. 3 W
Dimensions: Without /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1")
With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
Weight: With package: approx. 202 g (0.4 lb.)
Camera: approx. 93 g (0.2 lb.)
