DS-KH6320-TE1

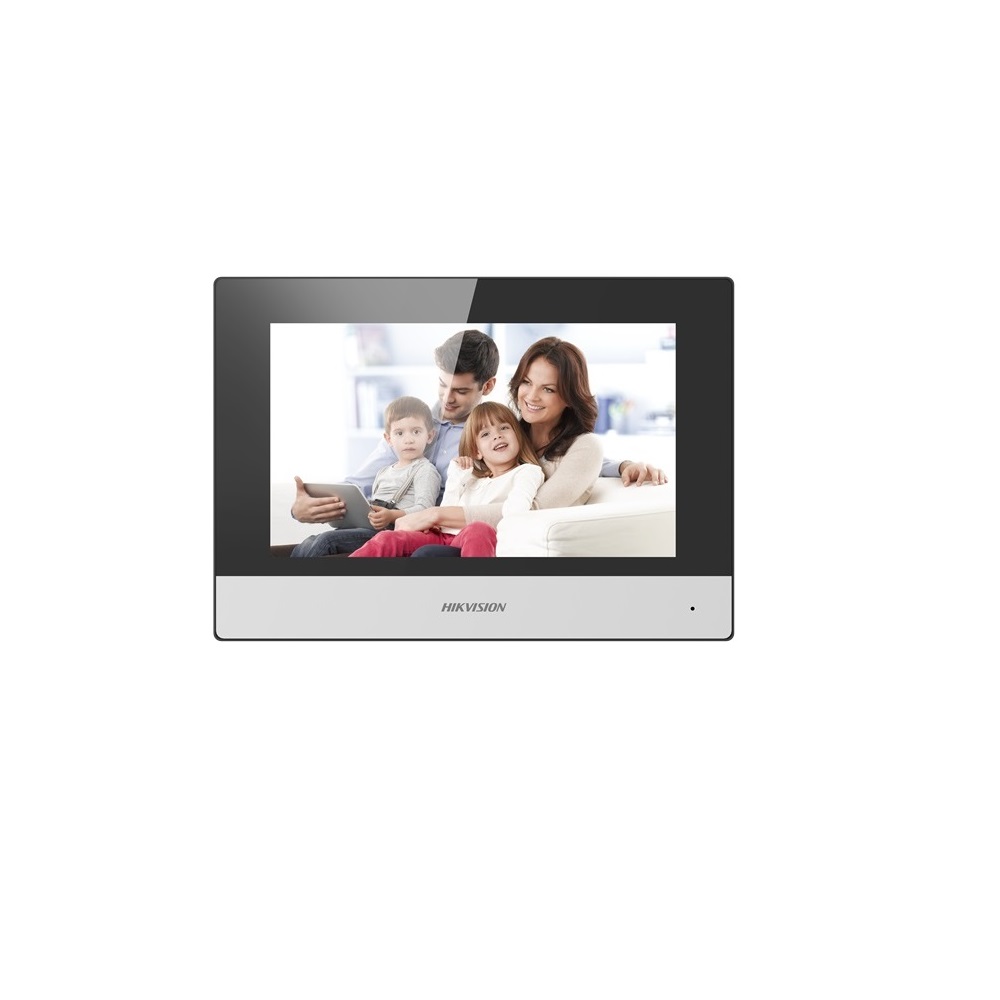

KH6 Series IP-Based Indoor Station

New UI V2.0: User friendly design
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Stores messages and capture pictures in the TF card
Remote unlocking via the client software or the mobile client
Views live videos of door stations and linked cameras

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System Parameters
Operating SystemEmbedded Linux operation system
ROM32 MB
RAM128 MB
CPUEmbedded processor

Display Parameters
Screen Size7-inch
Operation MethodCapacitive touch screen
TypeColorful TFT screen
Resolution1024 × 600

Video Parameters
Lens/
ResolutionNot supported.
FOVNot supported.
WDR/
Video Compression Standard/
Focal Length/

Audio Parameters
Audio Compression StandardG.711 U
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio Compression Bitrate64 Kbps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable

Capacity
Event Capacity200
Notice Capacity16
Linked Indoor Station Capacity5
Linked Indoor Extensions Capacity8

Network Parameters
Communication ProtocolTCP/IP, SIP, RTSP
Wired Network10/100 Mbps self-adaptive
Wi-Fi Standard/
Bluetooth Version/
3G/4G StandardNot supported.
Zigbee/

Device Interfaces
Alarm Input8-ch alarm inputs
Network Interface1 RJ-45 10/100 Mbps self-adaptive
TAMPER/
RS-485/
USB/
TF CardMax to 32 G, SD 2.0 or lower version
Alarm Output/
Power Interface1

General
Button0
InstallationSurface mounting
Indicator0
With package: 675 g

Without package: 350 g
Protective Level/
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimensions200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Battery/
Application EnvironmentIndoor
Power Consumption≤ 6 W
LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
