DS-KH8520-WTE1

KH8 Series Indoor Station

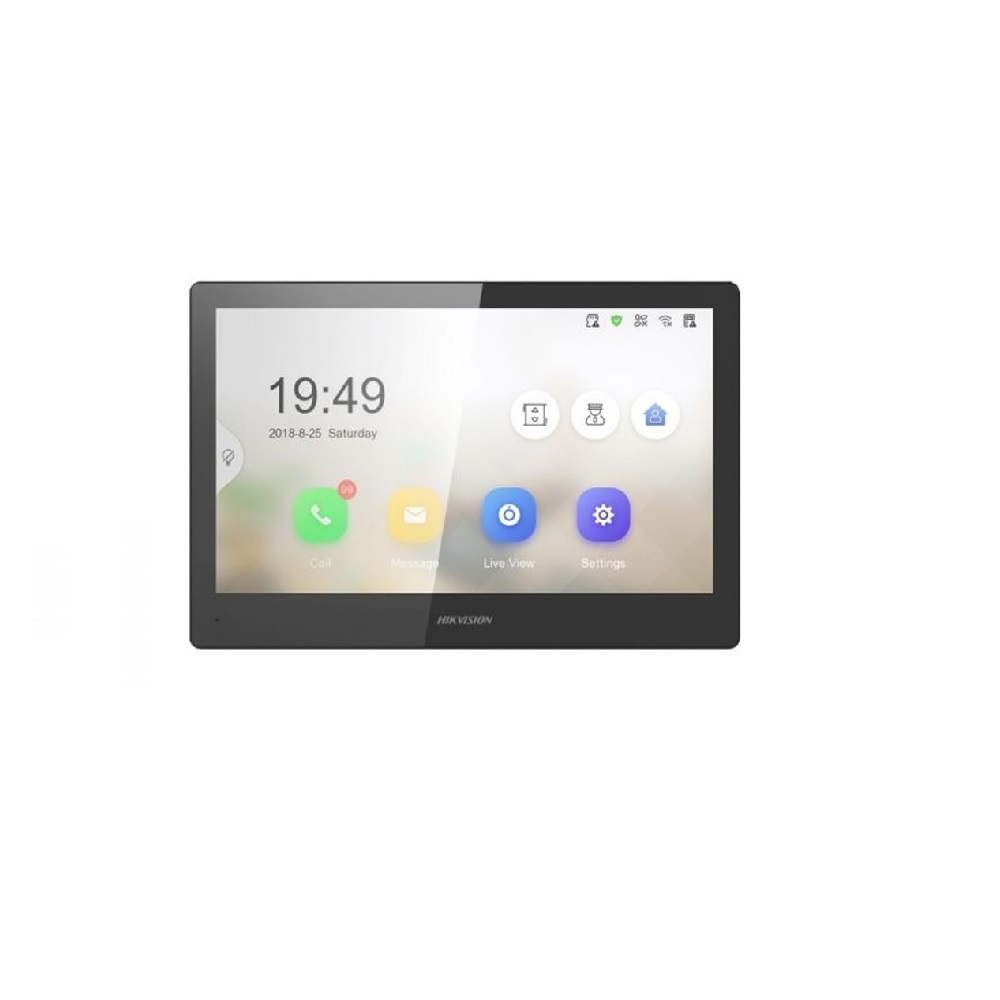

10-inch Touch-Screen Indoor Station
Wi-Fi, standard PoE/ 12 VDC
TF card, max 32G, stores messages and pictures
8-ch alarm input, 2 alarm output, 1x485
Remote unlocking via the client or the APP
Views live videos of door stations and linked cameras

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Display Parameters
Size10.1-inch
Operation MethodCapacitive touch screen
TypeColorful TFT screen

Video Parameters
LensNot supported.
FOV/
Pixel/

Audio Parameters
Audio QualityNoise suppression and echo cancellation

Network Parameters
Communication ProtocolTCP/IP, SIP, RTSP
Wired Network10/100 Mbps self-adaptive
Wi-FiWi-Fi 802.11 b/g/n
Bluetooth/
Zigbee/

Device Interfaces
Network Interface1 RJ-45 10/100 Mbps self-adaptive
Power Interface1

General
Button0
InstallationSurface mounting
Indicator0
1118 g (with packaging)

660 g (without packaging)
Protective Level/
Power Supply Method
IEEE802.3af, standard PoE

12 VDC/1 A
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimensions254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
Battery/
Application EnvironmentIndoor
Power Consumption
≤ 6 W
LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
