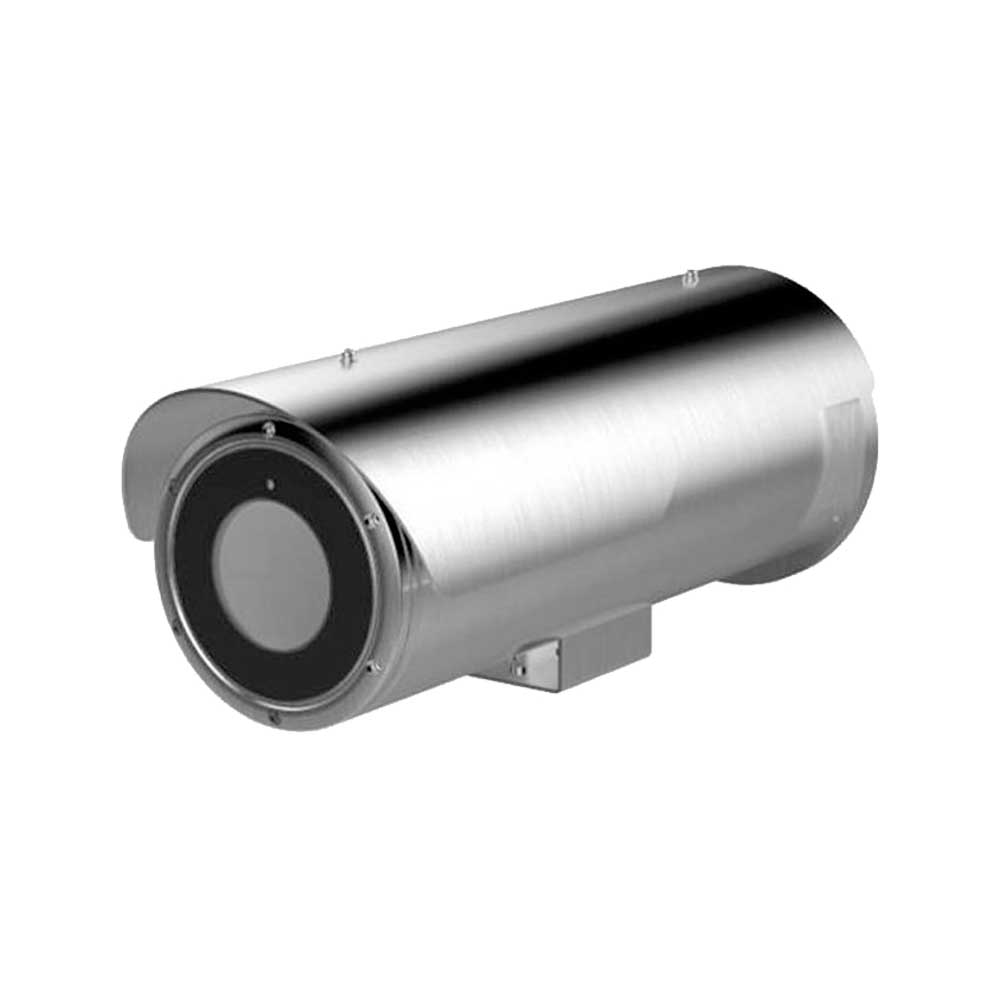

DS-2CD6626B/E-HIRA/IR5

2 MP Ultra Low-Light Anti-Corrosion Bullet Camera

l Up to 2.0 megapixel high resolution
l 120 dB wide dynamic range
l Three video streams
l On-board storage, up to 128 GB
l IR range: 100 m (11 to 40 mm)/50 m (3.8 to 16 mm)
l Anti-corrosion standard:WF2, C5-M, NEMA-4X
l IP 67

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/1.8" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter time:		1 s to 1/100,000 s, support slow shutter
Lens:		3.8 to 16 mm F1.5, horizontal field of view: 103.1° to 28° 11 to 40 mm F1.5, horizontal field of view: 36.7° to 11.5°
Lens Mount:		CS
Day& Night:		IR Cut Filter
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264/MJPEG/MPEG4
H.264 code profile:		Baseline profile/main profile/high profile
Video bit rate:		32Kbps~16Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)
Triple Streams:		Yes

Max. Image Resolution:		1920 x 1080
Frame Rate:		50 Hz: 50 fps (1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 60 fps (1920 × 1080,1280 × 960,1280 × 720)
Sub Stream:		PAL: 50 Hz: 25 fps (352 × 288, 640 × 480, 704 × 576 ), NTSC: 25 fps (352 × 240, 640 × 480, 704 × 480 ) PAL: 60 Hz: 30 fps (352 × 288, 640 × 480, 704 × 576), NTSC: 25 fps (352 × 240, 640 × 480, 704 × 480 )
Third Stream:		Independent with Main Stream and Sub Stream, up to: 50 Hz: 25 fps (1920 × 1080) 60 Hz: 30 fps (1920 × 1080)
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:		Yes, zone configurable
HLC:		Support
Smart Defog:		Support
EIS:		Support
ROI:		Up to 4 fixed areas in each stream or dynamic tracking
Picture Overlay:		Support 24-bit BMP image overlay, zone optiona LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format
Day/Night Switch:		Auto, schedule, alarm trigger

Network
Network Storage:		Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Alarm Trigger:		Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:		TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function:		One-key recovery, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
System Compatibility:		ONVIF (Profile S, Profile G), ISAPI

Interface
Communication Interface:		1 10M/100M Ethernet port , 1 RS-485 port, 1 RS-232 interface
Audio:		1 x 3.5mm audio input (Mic in / Line in) / output external interface
Alarm:		1 input/1 output (up to DC24V 1A or AC 110V 500mA)
Video Output:		1Vp-p Composite Output (75 Ω, BNC)

Smart Feature-set
Behavior Analysis:		Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal

General
IR Range:		100 m (11 to 40 mm)/50 m (3.8 to 16 mm)
Operation Condition:		-40°C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply:		AC24V
Power Consumption:		Max. 100 W
Weather Proof:		IP67
IR Range:		100 m (11 to 40 mm)/50 m (3.8 to 16 mm)
Dimensions:		465 mm × 189.7 mm × 180 mm (18.3" × 7.5" × 7.1")
Weight:		10.1 Kg (22.3 lb.)
