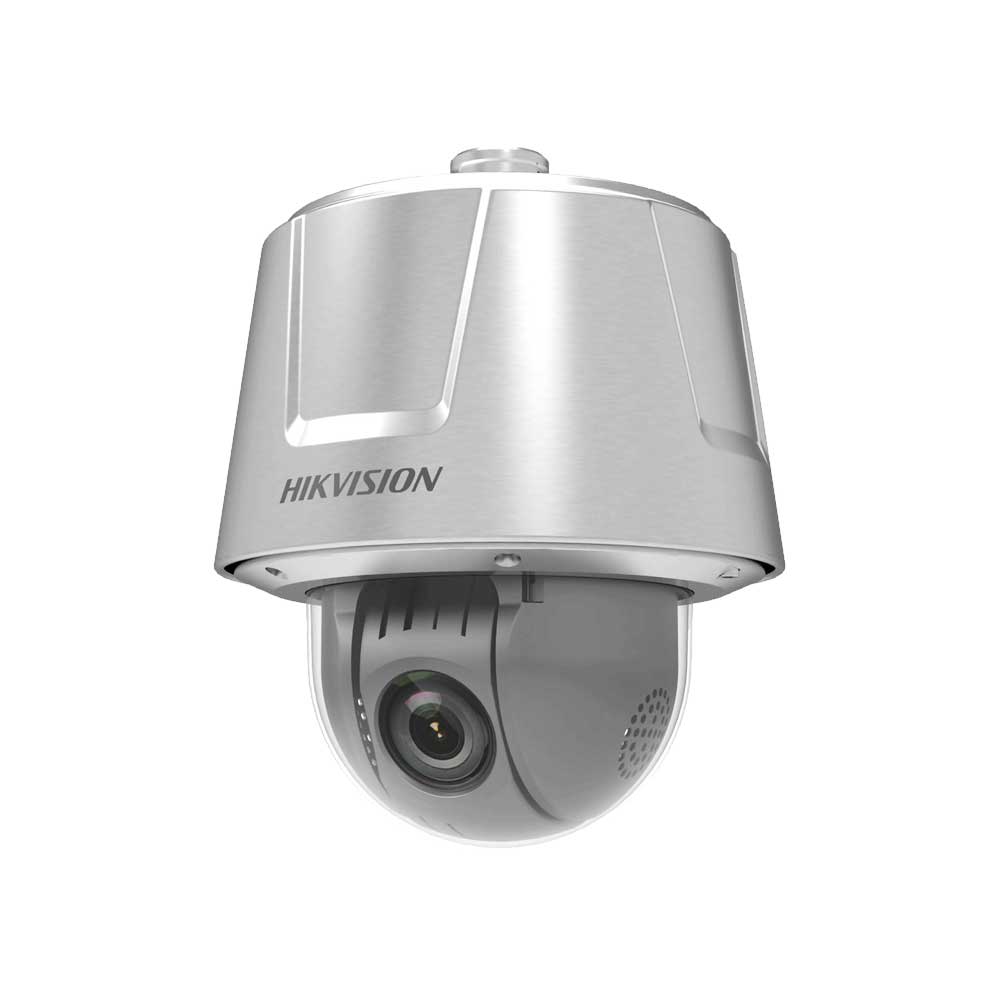

DS-2DT6223-AELY

2 Megapixel Anti-Corrosion Network PTZ Camera

• 1/1.9’’ progressive scan CMOS
• Up to 1920 × 1080 resolution, 23X optical zoom
• 120dB WDR, 3D DNR
• IP67
• 316L stainless steel anti-corrosion materials design
• WF-2, C5-M NEMA 4X anti-corrosion standards
Camera
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: F1.5, AGC On: Color: 0.002 lux, B/W: 0.0002 lux
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.9-135.7mm, 23x
Zoom Speed: Approx.4.4s(Optical Wide-Tele)
Angle of View: 59.8-3.0 degree (Wide-Tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F3.4
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Call Preset/Patrol/Pattern/Auto Scan/Random Scan/Frame Scan after a pre-defined inactivity time interval
PTZ Position Display: ON/OFF
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream: 50Hz: 25fps(704×576, 352×288, 176×144)
60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream: 50Hz:25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz:30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
ROI encoding: Support 24 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: Max.60W
Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ262(mm) ×330(mm)
Weight (approx.): 10kg (approx.)
