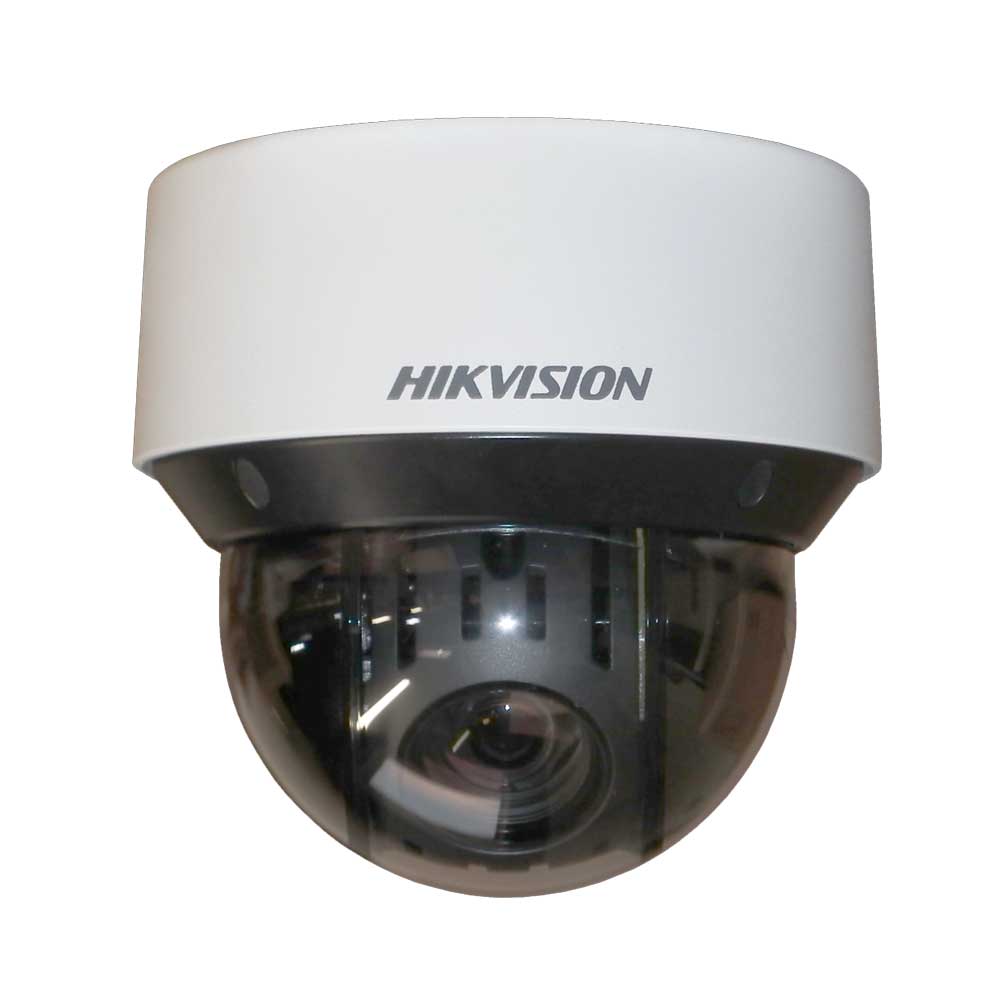

DS-2DE4A215IW-DE

2MP Network IR PTZ Camera

2MP 15x Network IR PTZ Camera
1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Ultra-low light:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
15× optical zoom, 16× digital zoom
120 dB WDR, 3D DNR, HLC, BLC
Up to 50 m IR distance
12 VDC & PoE+ (802.3at, class4)
Support H.265+/H.265 video compression
Camera
Image Sensor: 1/2.8" HD progressive scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 1/1 to 1/30,000s
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5 mm to 75 mm, 15× optical
Zoom Speed: Approx. 2.4 s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 53.8° to 4.0° (wide-tele)
Vertical field of view: 31.9° to 2.3° (wide-tele)
Diagonal field of view: 60.4° to 4.6°(wide-tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F3.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s
Tilt Range: -5°~90° (Auto Flip )
Tilt Speed: Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets for each patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: ON/OFF
Infrared
IR irradiation distance: 50m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 2
Alarm Output: 2
Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
General
Power Supply: 12VDC, PoE+
Power Consumption: Max.: 18W (IR light 5W Max.)
Working Temperature/Humidity: Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ 169 mm × 161 mm (Φ 6.65" × 6.34")
Weight (approx.): Approx. 2.45kg (5.40lb)
